Flagship Pivot System

AURUM

The safety door for extraordinary dimensions, with vertical pivot operation and installation coplanar with the wall.

Freedom Without Limits

AURUM is the pinnacle of entrance architecture — a pivot safety door engineered for oversized installations. The vertical pivot mechanism, with two adjustable concealed pins at the top and bottom, allows the door to rotate seamlessly on its central axis, creating a wider opening and flooding the entrance with natural light.

Every AURUM is custom-made. No standard sizes, no standard finishes. The door is designed around your architecture, not the other way around.

8′6″ Max Width Larger on request
14′9″ Max Height Larger on request
NOA Miami-Dade Hurricane rated, standard
1,235 lbs Max Weight Motorized option

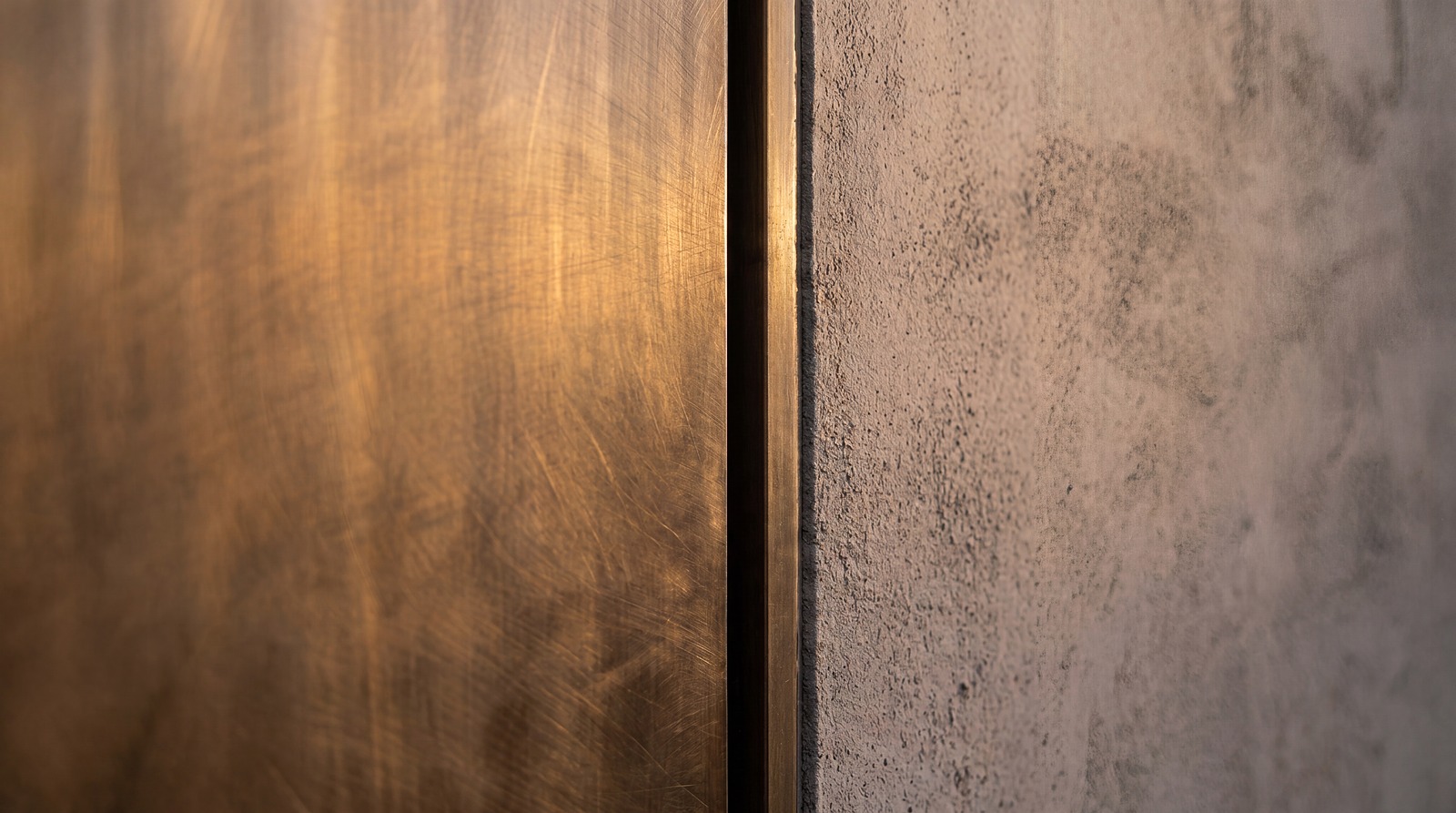

Close view of the AURUM leaf sitting on the same plane as the facade, separated only by a shadow line
The Coplanar Principle

One plane. The leaf and the facade,
separated by a shadow line.

Technical Data

Performance Specifications

Security & Build Forced-entry certified · steel monocoque
Break-in Resistance Forced-entry certified — sustained tool-attack protocol (tested 4′3″ × 7′10″)
Leaf Construction 15/10 high-resistance steel tray, 6 horizontal + 2 vertical reinforcing bars, 30/10 lock shield
Locking 4 dead bolts + latch, 3 lateral switchlocks, re-codable high-security cylinder with sealed owner keys
Comfort & Climate STC 38 · U-factor to 0.18
Thermal Insulation (U-factor) 0.28 (standard) / 0.23 / 0.18 Btu/h·ft²·°F (full thermal-break frame & leaf)
Acoustic Insulation 38 dB (≈ STC 38)
Weather Performance Miami-Dade TAS 201 / 202 / 203 — large-missile impact, cyclic wind pressure, water infiltration; sealed-threshold kit for maximum sealing
Certifications Miami-Dade NOA · UL 120
Hurricane Certification Miami-Dade NOA approved (standard)
Fire Resistance UL 10C fire-rated options — up to 120 minutes (UL 120)
The FritsJurgens Pivot 1,100 lbs on one axis
Pivot Mechanism FritsJurgens System M+ — concealed floor-mounted pivot hinge
Pivot Max Weight Up to 1,100 lbs (Class F-G)
Pivot Max Width Up to 16′5″
Min Door Thickness 1-9/16″ (Class AA-E) / 2″ (Class F-G)
Hold Positions 0° and 90° — self-closing to 0°
Motion Control Soft close, hydraulic backcheck, 30° speed control, free swing
Opening Direction Single-acting — inswing (opens inward)
Pivot Material Stainless steel & anodized aluminum — salt-spray tested 480+ hours, marine-grade
Floor Plate Solid tempered steel, 5/16″ depth, radiant floor heating compatible
Pivot Finish Brushed stainless steel / PVD Black
Dimensions & Options to 8′6″ × 14′9″ · motorized
Max Dimensions 8′6″ × 14′9″, larger on request
Motorization Optional — floor motor for leaves to 1,235 lbs, run from the access app
Threshold Options Standard / sealed threshold / invisible zero-barrier threshold

The Mechanism

Vertical Pivot

Every AURUM is powered by the FritsJurgens System M+ — the world's leading concealed pivot hinge. Installed flush within the floor, the mechanism is completely invisible. No exposed hardware, no bulky hinges — just a seamless, monolithic entrance.

The System M+ carries doors up to 1,100 pounds, with self-closing, soft close, and hydraulic backcheck built in. Even the largest AURUM moves with a single finger and closes in whisper-smooth silence.

Download specifications

Plan view · move your cursor up and down — the leaf follows the offset axis

Hardware

Handles & Access

FRONT ELEVATION FLUSH RECESS PLATE SLIDES ASIDE TOP SECTION

GHOST

Flush-mounted sliding handle that disappears into the surface. There, only when you need it.

FRONT ELEVATION SHADOW GROOVE GRIP INSIDE FULL HEIGHT TOP SECTION

SHADOWLINE

A recessed channel drawn down the leaf — the handle is a shadow line, nothing more.

FRONT ELEVATION SOLID BAR ON TWO STANDOFFS TOP SECTION

MONUMENT

The oversized pull in brushed stainless. A bold statement for extraordinary entrances.

FRONT ELEVATION VERTICAL BAR FULL HEIGHT STEEL OR BRONZE TOP SECTION

SPIRE

Full-height vertical bar in steel or bronze. Minimal, architectural, unmistakable.

Smart Access

Four ways in,
one system.

Your ORO key-card, a fingerprint, the app, or a private code. Choose how home opens, and grant or revoke access from anywhere.

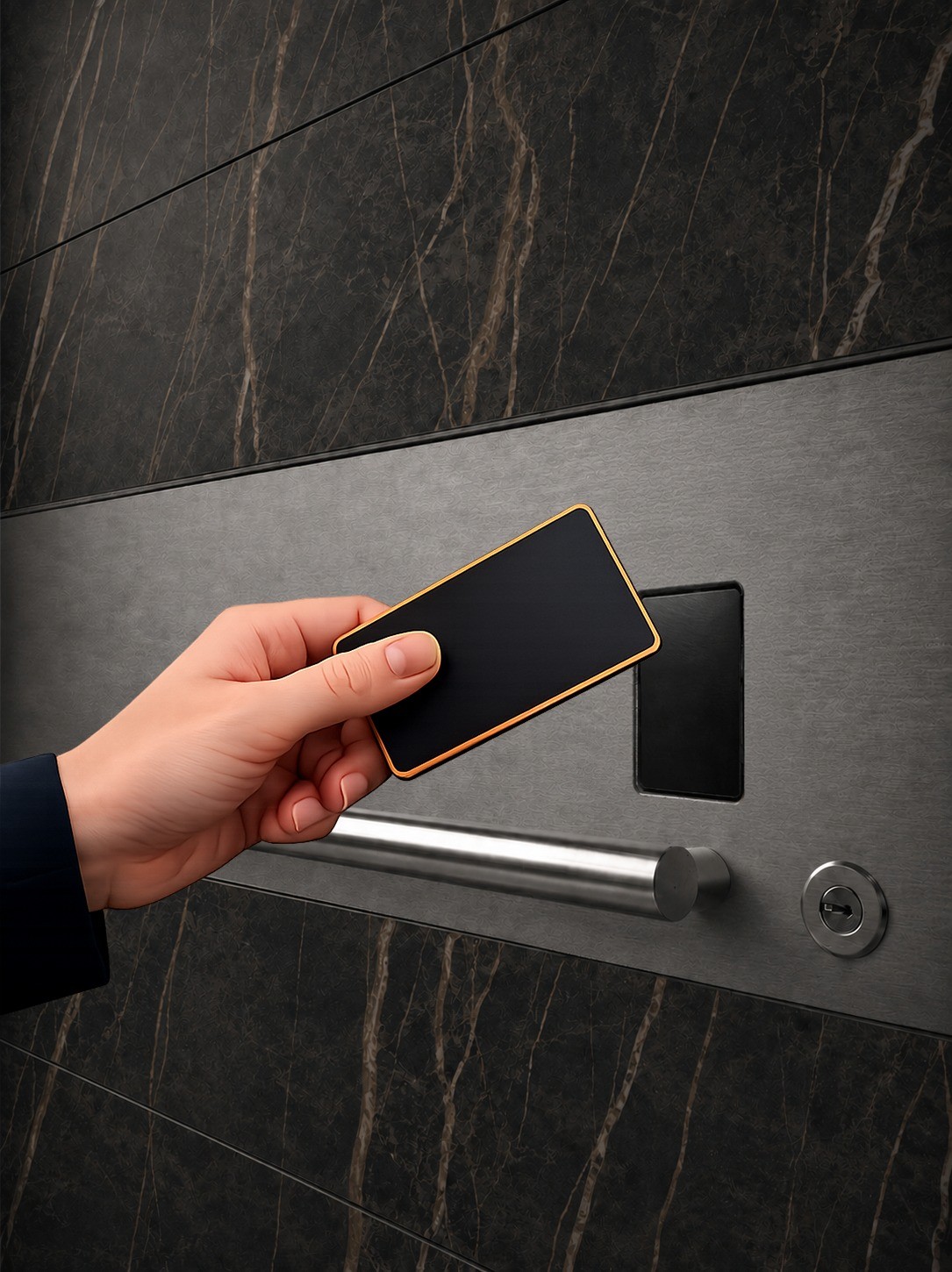

ORO smart access on the AURUM door

Tap your ORO key-card to the reader. No mechanical key to copy, lose, or hand over.

Download spec

Options

Additional Features

01

Motorized Opening

Floor-integrated motor supporting doors up to 1,235 lbs. Controlled from the access app or a wall switch. Whisper-quiet operation.

02

Thermal Barrier (3TT)

Enhanced insulation reducing U-factor to 0.18 Btu/h·ft²·°F — full thermal break on frame and leaf for extreme climates.

03

Fire Resistance

Fire-rated configurations to UL 10C — 60 to 120 minutes (UL 120 listed).

04

Hurricane Proof

Miami-Dade certified. Engineered for extreme wind resistance in coastal and hurricane-prone areas.

05

The Invisible Threshold

Invisible threshold system eliminating architectural barriers. Flush floor transition, water-tight seal.

06

Wall System (AWS)

Modular wall sectors matching the door finish. The door becomes part of the wall — a seamless architectural element.

For Architects & Specifiers

The AURUM technical pack

Full performance dossier, section drawings, installation details and the finish library — assembled for your project and sent personally, with a designer on the line for the questions that follow.

Request the technical pack Open the Atelier

Ready to Begin?

Configure Your AURUM

Every AURUM is unique. Contact us to begin the design process — our team will guide you from concept to installation.

Open the Atelier Request Consultation

Or see and move a full-size AURUM in person at our Dania Beach showroom.
